1995 Replacement MLPS Pinout

[IVSVS]

Anyone have the instructions handy for adapting the upgraded 1995 MLPS to a 1993 trans? I installed a 1995 on my 93 long ago, and it may be failing. I cannot find the specific 1-1 replacement 1995 MLPS and may have to revert to the 1993 version. Of course I cannot find the original pinout instructions for the connector.
I'm working off the part numbers in Fred's .pdf in the FAQ section here.
Thanks in advance!!
Jim



[IVSVS]

Nobody??? Search function leads to dead links, I can't even bring up my old content.



[Raymond_B]

Nobody??? Search function leads to dead links, I can't even bring up my old content.

Can you post up a few links to what you're finding, but the link is dead.



[rusty_408]

Thread 'Ford OEM Wiring, Location and Vacuum Diagrams'

Jan 20, 2025

Ford OEM Wiring, Location and Vacuum Diagrams

• rusty_408
• Replies: 0
• Forum: FAQ Section for Gen 1 Trucks---Check here FIRST

•

pg 38 and 144 have some info.

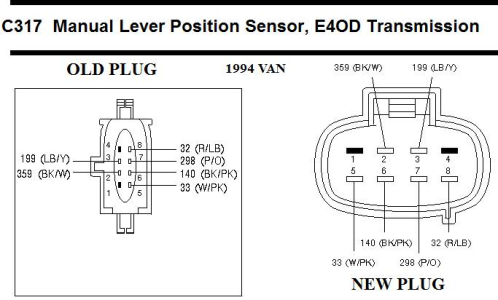

Also found this



[oilwell1415]

Nobody??? Search function leads to dead links, I can't even bring up my old content.

Be patient. There aren't 50 people online at any given time like their used to be. Sometimes it takes a few days for someone who knows to see your post.



[IVSVS]

Thread 'Ford OEM Wiring, Location and Vacuum Diagrams'

Jan 20, 2025

Ford OEM Wiring, Location and Vacuum Diagrams

• rusty_408
• Replies: 0
• Forum: FAQ Section for Gen 1 Trucks---Check here FIRST

•

pg 38 and 144 have some info.

Also found this

View attachment 106041

Thank You!



[IVSVS]

Can you post up a few links to what you're finding, but the link is dead.

Alot of my pictures are not coming up, Check the thread "Autopsy".
I cannot find any information on old posters, namely Brian Baskins and EZ Speed, Stroked93 aka Adam@CMG



[Raymond_B]

Alot of my pictures are not coming up, Check the thread "Autopsy".
I cannot find any information on old posters, namely Brian Baskins and EZ Speed, Stroked93 aka Adam@CMG

It broke way before I took over, at some point the forum went through an upgrade and the links became invalid. **However the data is still there, so if I have specific links I can try to provide a working URL.
